Non-Contact Access and Attendance Solution
The iT100 is Aditech’s newest non-contact biometric offering that features both iris and facial recognition technology. Automatic recognition of iris and/or face is possible.
A large capture volume allows for increased flexibility, speed and convenience.
Enhanced security through Secure Boot and an open Android Platform provides an opportunity for third party application development.
Features
IRIS/FACE Fusion
Operates in Iris only / Face only / and, or, fusion mode. Select and use according to the biometric security environment.
Simultaneous Biometric CaptureAutomatically captures dual iris and face at the same distance.
CountermeasuresA proven set of anti-spoof measures that continues to set the standard for the industry is included.
Non-Contact AuthenticationAutomatically captures faces and iris naturally up to 24 inches or 60 cm.
7inch Multi Touch Display
Easy on device setting & user enrollment available with Self-guidance with live images on 7” multi Touch LCD.
Eye Safety Certified
Tested and meets UL, ANSI, and international eye safety standards.
Automatic Tilt Adjustment
The Camera automatically finds user and moves to a location where the user’s eyes and face can be photographed.
Advanced Security
Information is encrypted, Secure Boot platform and Advanced Network security.
Large Capture Volume
Quickly and easily authenticates just by looking at the screen with wide recognition range of Iris 30~60cm & Face 30~80cm.
Open Android Platform
Open Android Platform provides for third party application development.

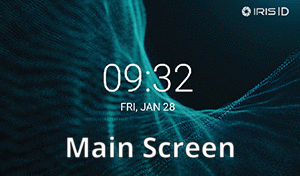

User Interface
Identification Mode

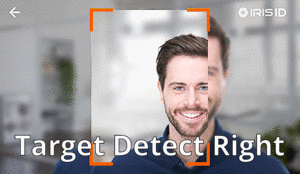

Target Positioning
Installation
Technical Specification
| Features | |
| Dimensions (WxHxD) | 7.08” x 5.39” x 1.18” (180mm x 137mm x 30mm) |
| Weight | 1.2lbs (543g) |
| Type | Walk-up |
| Power Input / Consumption | 12 – 24 VDC (auto – +/- 500 mv ripple voltage industry standard) / Max. 30watt |
| OS | Android OS 7.1 |
| User Interface | Self-guidance with displayed images in LCD |
| Operation | Iris and or Face, Face + Iris Fusion |
| User Capacity | Up to 5,000 1:N, 100,000 1:1 users |
| Transactions | Number of transaction logs on device DB: 1M (Iris) / 100,000 (Face) |
| Encryption | AES256 |
| Matching Speed | Less than 1 sec |
| Languages | Support multiple languages and characters simultaneously English & Korean / Additional language pack downloadable |
| Tilt | Auto Range: -25° ~ +25° |
| USB | 1 Port |
| Memory | 16GB |
| Tamper Detection | Yes |
| Algorithm | IrisCapture / DualEyeInfo™ / Countermeasure / Face Matching |
| Real Time Clock | Internal battery |
| Proximity detection | ToF Sensor |
| Connectivity | Ethernet or Wi-Fi (optional) Relay |
| Certifications | CE, FCC, KC, Eye Safety, UL294 |
| Temperature | Operating: 32 ~ 113℉ (0 ~ 45℃) Storage: -4 ~ 194℉ (-20 ~ 90℃) |
| Optics | |
| Distance Sensing | Dual Sensors for high accuracy |
| Iris / Face Camera | 5MP B/W CMOS image Sensor / 5MP Color CMOS image Sensor |
| Image Resolution | ISO Compliant |
| F/# | F/2.4 |
| AF | Iris Camera: Auto Focus Face Camera: Auto Focus |
| Output Image / Template | Iris Template : 512 byte per eye, Face Template 2KB Face Image (Preview): 480 x 640 Face Image (Streaming): 720×1280 Face Image (Capture Mode): 480×640, 960×1280, 1920×2560 |
| Iris Capture IR LED | ANSI ISO Eye Safety certified |
| Operating Range | Iris Camera: 11.8 ~ 23.6“ (300mm ~ 600mm) Face Camera: 11.8 ~ 31.5”max (300mm ~ 800mm) |
| External Interfaces | ||
| Serial | RS232 for external smart card reader | |
| Relay | 1 Dry contact for Door\Gate activation | |
| GPIO | Configurable 2 GPIO’s- Programmed by application developer | |
| USB | USB 2.0 Host for DB up/download | |
| Connectivity | Wired Ethernet or Wireless LAN (Optional) | |
| Wiegand | Wiegand In/Out | |
| Speaker | 27x20mm, 89dB at 1 meter | |
